Custom Silicone Gasket Manufacturer

Application-specific silicone gaskets for OEM housings, lids, valves and other sealing interfaces. Develop profile geometry, compound, mold tooling and acceptance criteria around your actual compression, media and assembly needs.

Custom gasket profilesMaterial reviewTooling & samplesOEM RFQ
Illustrative custom-molded silicone gasket components

Reference gasket imagery; final properties follow the agreed drawing and material.

Engineering brief

Start with the interface—not only the gasket outline

Gasket function depends on installed compression, mating surfaces, sealing path, expected pressure and the environment over time. A profile copied without its assembly conditions may not perform as intended.

For a new or replacement gasket, the most helpful starting information is a drawing or sample together with groove, flange and compression details. Material and tooling options can then be discussed against those requirements.

Explore silicone parts manufacturing ↗

Critical design information

Geometry and mating parts
Gasket profile, contact area, groove depth, flange, bolt pattern and tolerances.
Sealing mechanism
Clamping force, desired squeeze, pressure differential and allowable leakage.
Service exposure
Fluids or gases, temperature range, cleaning chemicals and movement.
Supply requirements
Prototypes, expected annual quantity, drawing revision and acceptance tests.
Gasket geometry

Common molded silicone gasket configurations

Different interfaces require different contact geometry. Assess the parting line, material flow, compression and installation features for each profile.

01

Flat-cut / face profiles

Flat sections for some static faces; interface compression and thickness are key.

02

Molded shaped gaskets

Complex curves, locating features and stepped details for custom assemblies.

03

Flanged & grooved sections

Profiles that integrate with defined recesses or mating-body features.

04

Integrated sealing features

Project-specific ribs, lips or overmolding concepts subject to adhesion and DFM review.

Additional silicone gasket geometry and manufacturing reference photo

Tooling follows the profile

Undercuts, sealing ribs, transition radii and critical thickness can affect mold construction and inspection. Review these features before a final tooling decision.

Applications

Where custom silicone gaskets may be evaluated

The final grade and seal design must be assessed for the particular environment. A prior project does not establish suitability for a new one.

01

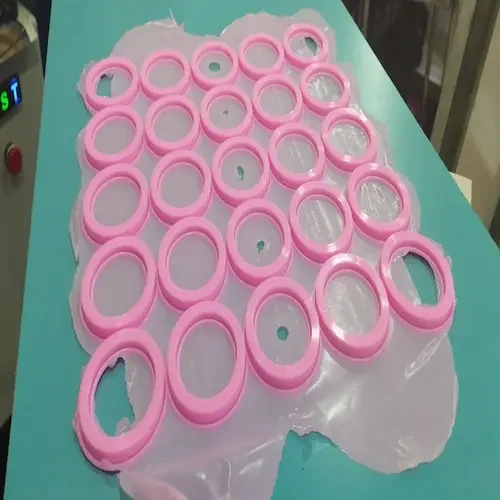

Valves & fluid connections

Review contact pressure, media compatibility, flange conditions and leakage criteria.

02

Equipment & electronics

Define enclosure fit, ingress goals, compression and periodic service requirements.

03

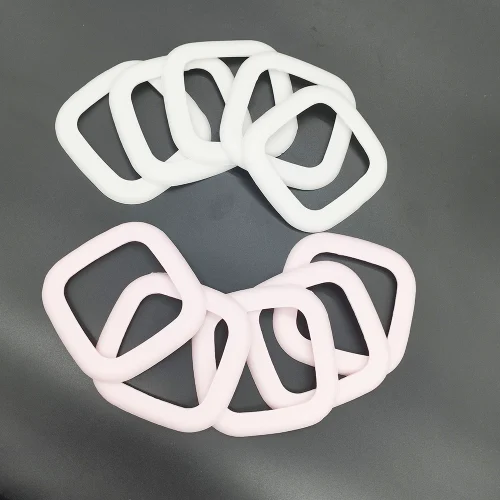

Custom lids & covers

Coordinate seal outline, fastening method and material behavior with the closure.

04

Industrial assemblies

Account for temperature, cleaning exposure, vibration or movement as applicable.

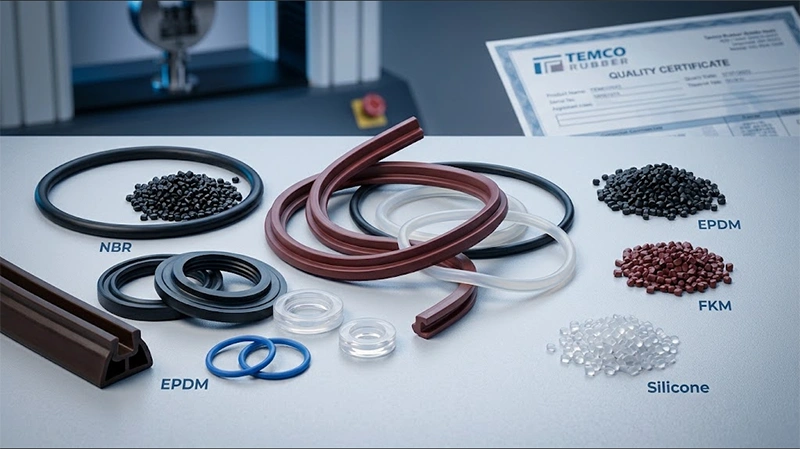

Material & qualification

Select material properties for real service conditions

No single silicone grade is suitable for every chemical, temperature or functional requirement. Discuss the duty cycle and the applicable qualification framework during design review.

01 / SELECTION FACTOR

Silicone formulation

Choose the grade and cure system against temperature, chemical exposure, compression behavior and process needs.

02 / SELECTION FACTOR

Mechanical performance

Review hardness, elongation, compression set and sealing recovery with assembly geometry.

03 / SELECTION FACTOR

Regulatory evidence

For food-contact, medical or other regulated applications, specify exact materials, standards and supporting documents.

Compliance note: "food-grade," "medical-grade," CMM inspection, full batch traceability or exact tolerance guarantees are not assumed for every project. Request the grade, inspection scope and documentation required for your use case.

From design to production

A practical custom gasket manufacturing workflow

Align mold geometry, material processing and inspection from the beginning of the project.

01

Drawing and DFM

Review interface, gasket profile, critical dimensions and potential mold risks.

02

Tooling concept

Consider cavity configuration, parting lines, venting and release requirements.

03

Molding approach

Assess compression, transfer or LSR routes against the part, compound and volume.

04

Sample acceptance

Agree inspection points and validation needs before repeat production.

Related capabilities: silicone mold manufacturing and LSR injection molding.

Quality and verification

Set acceptance criteria around sealing failure modes

Leakage, profile accuracy, compression and aging requirements should be defined for the actual assembly, not extrapolated from a sample image.

Dimensional / appearance review

  • Section dimensions, mold transitions and drawing revisions
  • Contact faces, flash, parting line and surface appearance
  • Critical locating details and installed fit
  • Sampling and traceability if explicitly requested

Material / functional review

  • Hardness and compression-set requirements
  • Assembly leakage testing at specified conditions
  • Media and temperature exposure evaluation
  • Buyer-defined standards and qualification records

These are possible controls; test equipment, frequencies, numeric pass criteria and documented compliance must be agreed for each order.

Related sealing components

Gasket, washer or custom molded seal?

The correct label matters less than the sealing geometry and interface requirements.

Custom silicone gasket

Usually follows a housing, flange, lid or irregular perimeter. Evaluate clamping load, section geometry and leakage requirements.

Washers and molded profiles

Washers can handle some face sealing and spacing duties, while complex seals incorporate special lips or features. Explore silicone washers and custom silicone seals.

Project quote

What should your gasket RFQ include?

Send a CAD drawing, the key assembly dimensions and anticipated service conditions. If this is a replacement seal, note any known installation or leakage issues.

  • 2D / 3D CAD or part sample
  • Seal outline, flange or groove details
  • Cross-section and critical tolerances
  • Compression and operating pressure
  • Fluids, gases and temperature range
  • Grade or hardness preference
  • Validation and compliance criteria
  • Prototype and annual volume
Buyer FAQ

Custom silicone gasket questions

Technical considerations for gasket design, material choice and manufacturing review.

Can you make a silicone gasket from my CAD drawing?

Share the drawing and the mating-part or groove geometry for an initial manufacturability review. Gasket function and tooling are evaluated for the specific assembly.

Which silicone hardness should I choose?

Hardness must be assessed alongside gland or flange design, compression, exposure and required sealing behavior; it is not a complete specification by itself.

Is silicone suitable for every fluid and temperature?

No. Compatibility and operating range depend on the compound, temperature, duration and media. Provide actual conditions for a material review.

Can you quote flat and complex molded gasket profiles?

Yes, both are possible topics for a project review. The material and production route depend on profile features, dimensions, tooling feasibility and order volume.

Do you offer FDA or medical-grade gaskets?

Any food-contact or medical suitability must be supported by the specific selected grade, intended use and relevant evidence. No blanket certification is assumed.

How is a molded gasket different from a washer or O-ring?

A gasket often matches a broader sealing perimeter or flange, a washer frequently provides a flat or stepped contact, and an O-ring has a circular cross-section. The assembly geometry determines suitability.

What measurements and tests should be specified?

Define critical gasket sections, mating fit, desired compression, leakage conditions, appearance criteria and any material or environmental checks.

How do I start a custom gasket order?

Provide a drawing or sample, sealing interface, material environment, critical dimensions, quantity and quality requirements through the contact form or email.

Discuss a custom gasket for your assembly

Send your drawing and intended application or browse the silicone manufacturing hub for adjacent capabilities.

Start a Technical RFQ ↗
